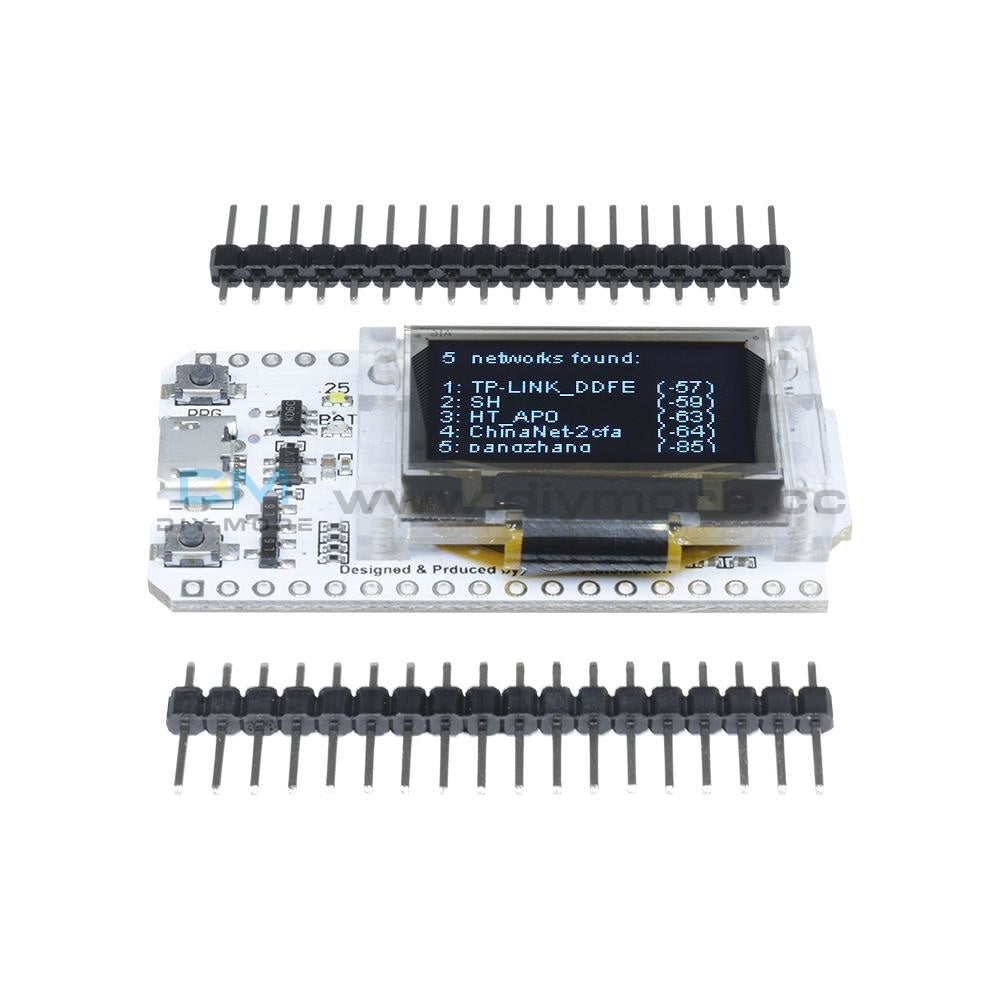

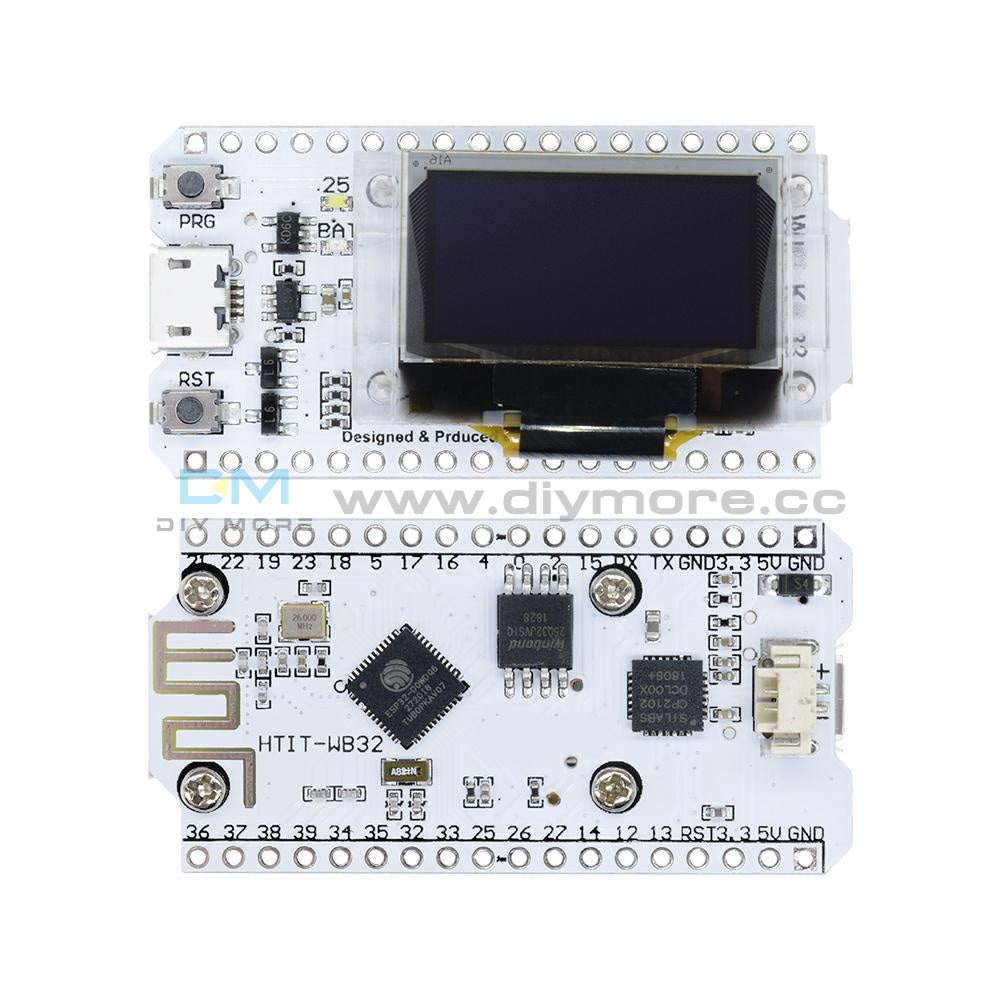

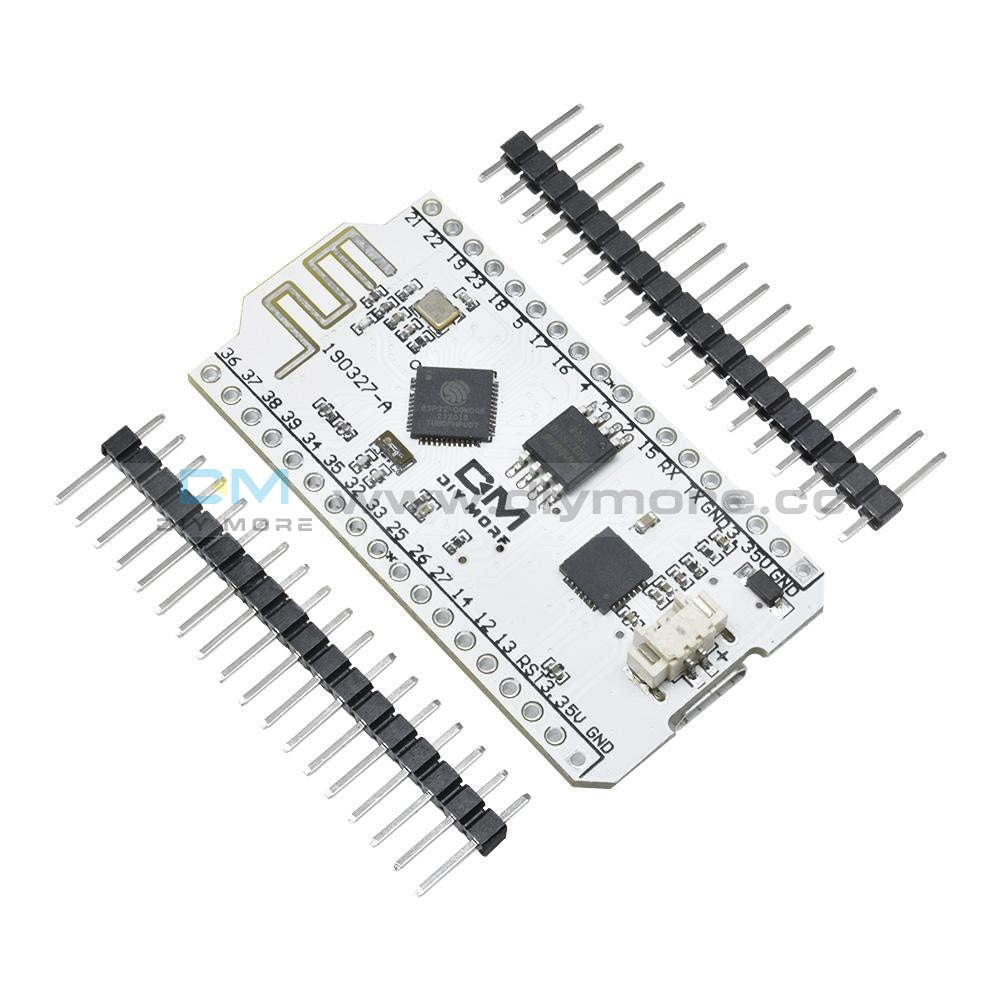

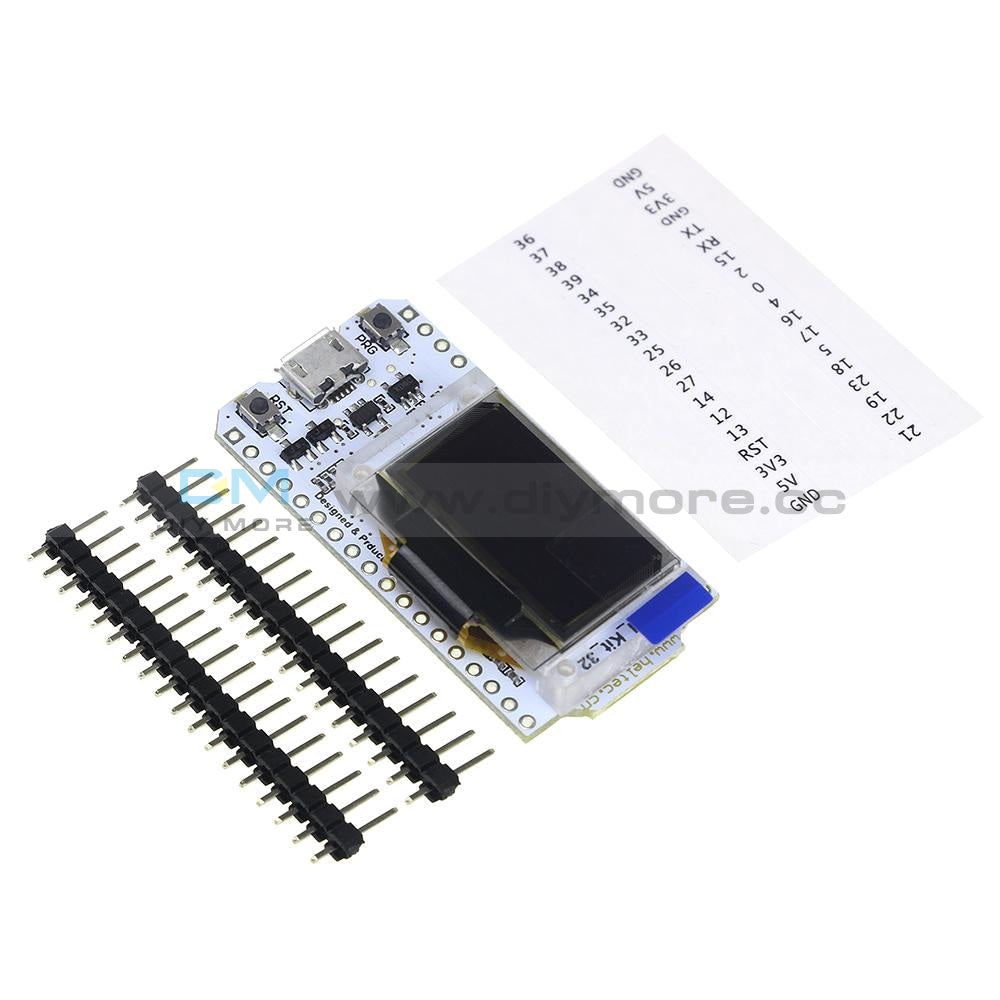

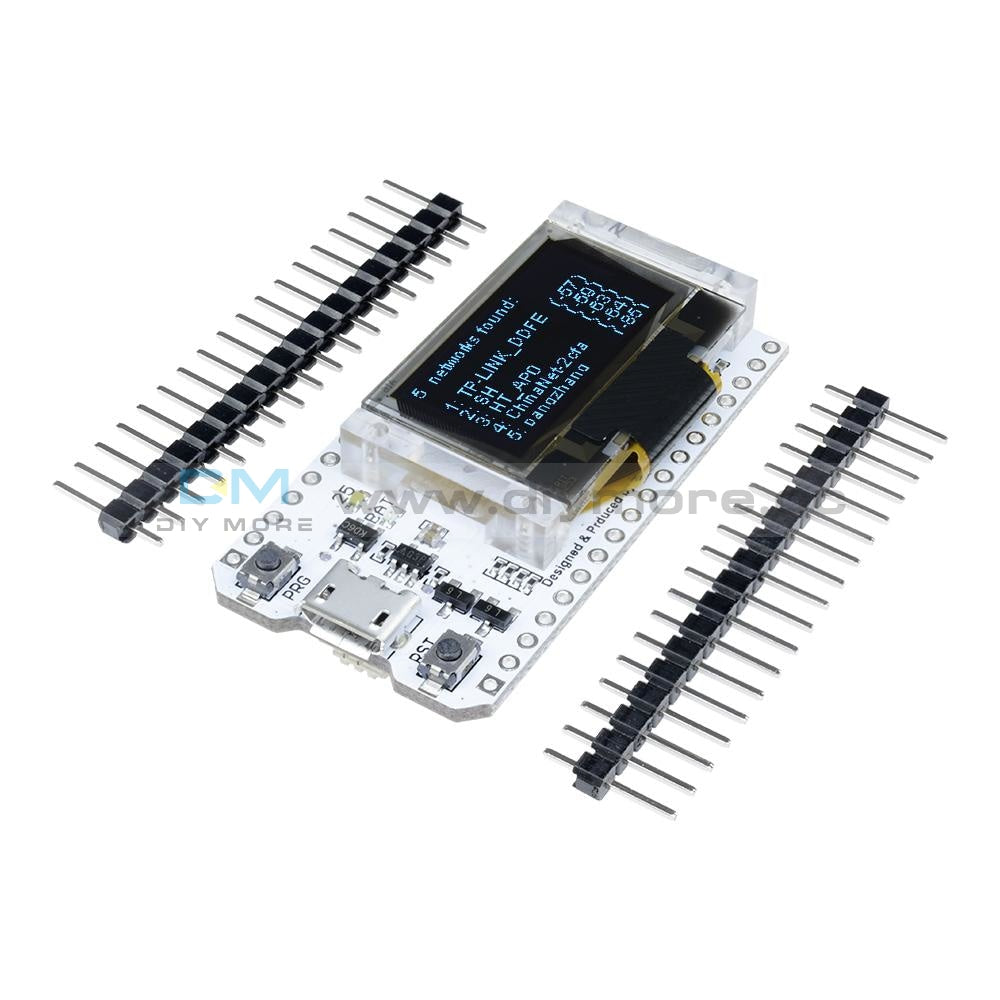

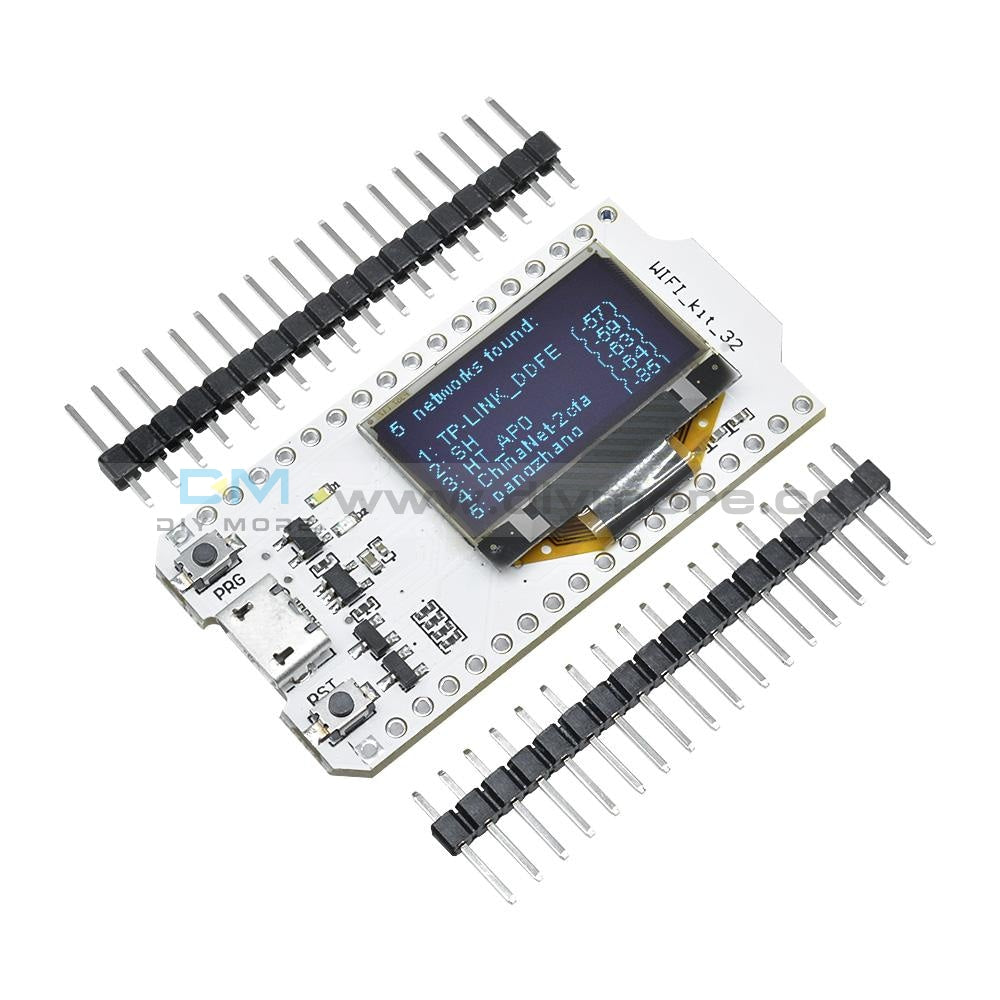

WIFI Kit 32 ESP32 WIFI wireless with 0.96 inch OLED Display CP2102 Development Board for Arduino Nodemcu
WIFI Kit 32 ESP32 WIFI wireless with 0.96 inch OLED Display CP2102 Development Board for Arduino Nodemcu
SKU:040283- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
- Main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / n HT40 Wi-Fi transceiver
- Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display,CP2102 USB to serial chip
- Supports Sniffer, Station, softAP and Wi-Fi Direct modes
- UDP continues to throughput by 135 Mbps
- Operating voltage: 3.3V to 7V
Description:
WIFI Kit 32 series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / n HT40 Wi-Fi transceiver,baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, perfect support for Arduino development environment.
Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Supports Sniffer, Station, softAP and Wi-Fi Direct modes
Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Receiver sensitivity up to - 98 dBm
UDP continues to throughput by 135 Mbps
Package Including:
1 * ESP32 development board with OLED
2 * Pin headers
