125K EM4100 RFID Karten Leser Modul RDM6300 ID RF UART Output für Arduino

125K EM4100 RFID Karten Leser Modul RDM6300 ID RF UART Output für Arduino

SKU:010622
Regular price $6.78 Sale price $3.56

Features:

Frequency: 125KHZ
- Baud rate: 9600
- Interface: TTL level RS232 format
- Working voltage: DC 5V(+/-5%)
- Working current: <50mA
- Receive distance: 20~50mm
- Working temperature: -10°C~+70°C
- Storage temperature: -20°C~+80°C
- Humidity: 0~95%
- Wiring size: 46*32*3mm
- PCB size: 38.5*19*9mm

Package Included:

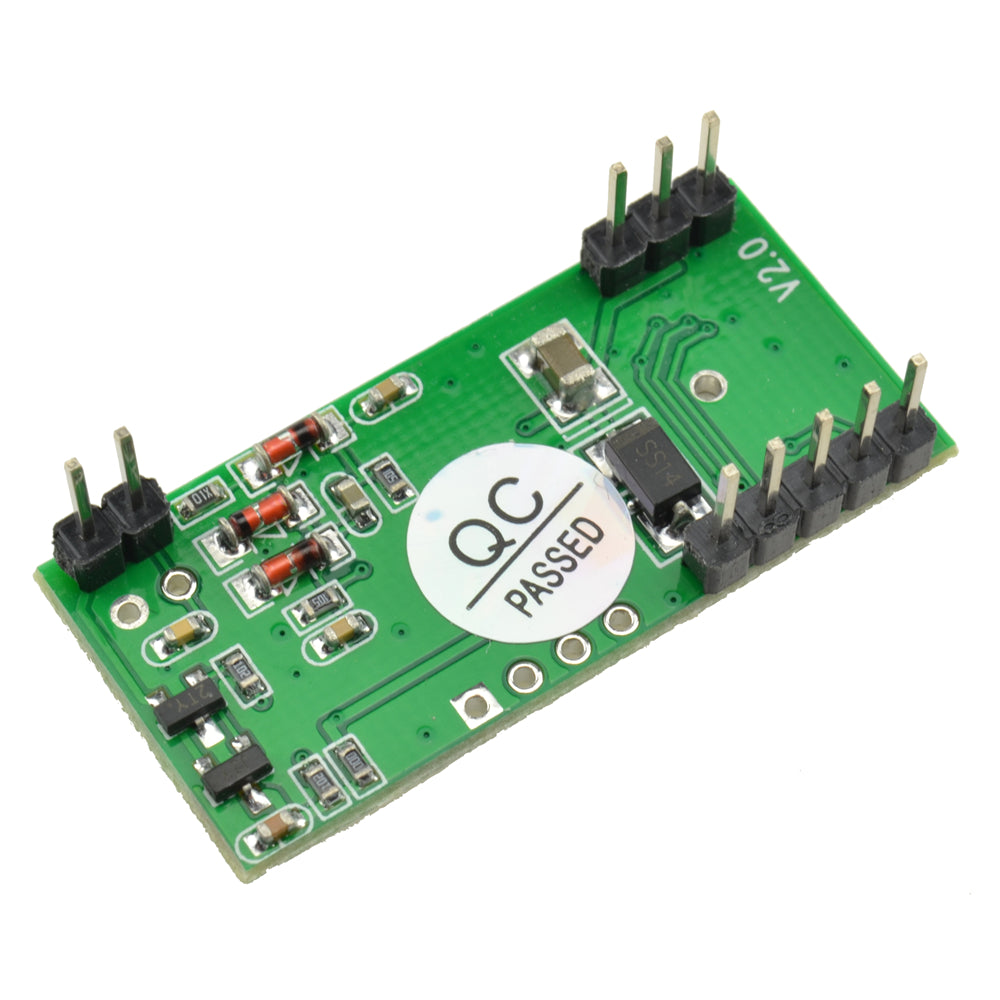

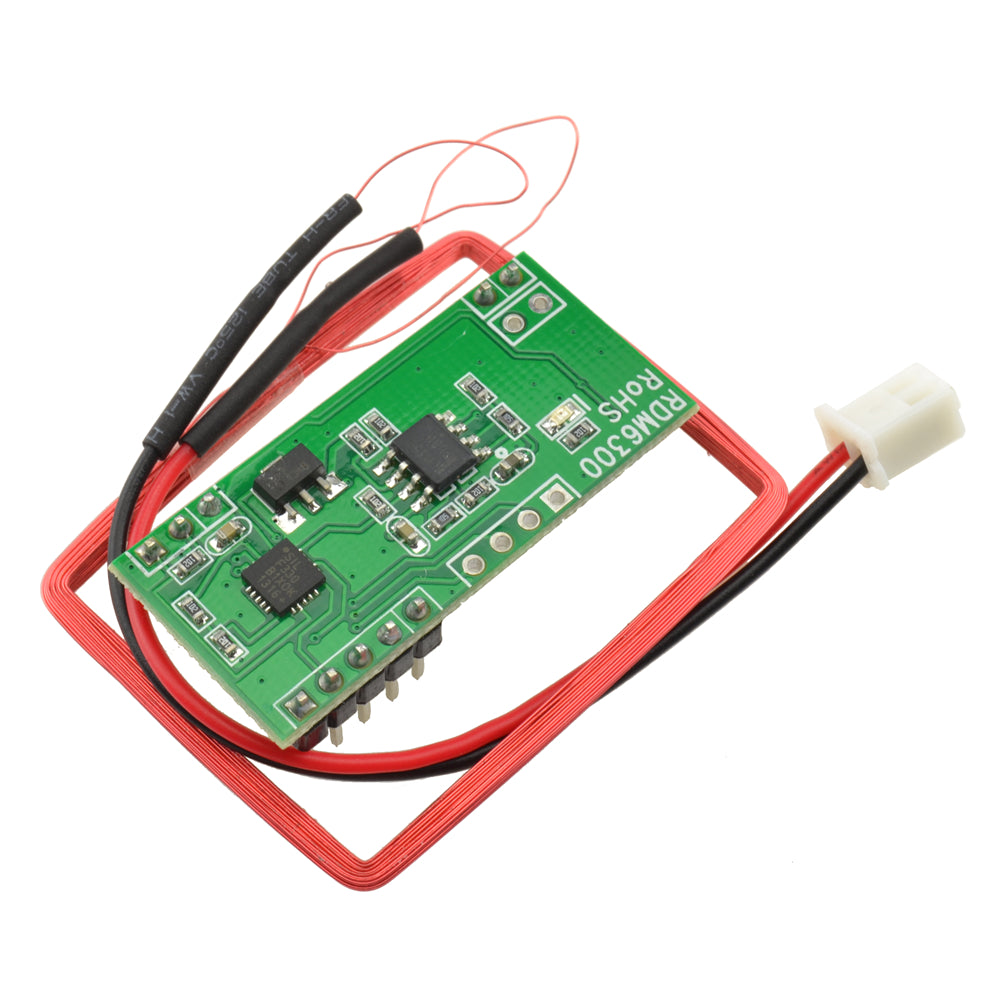

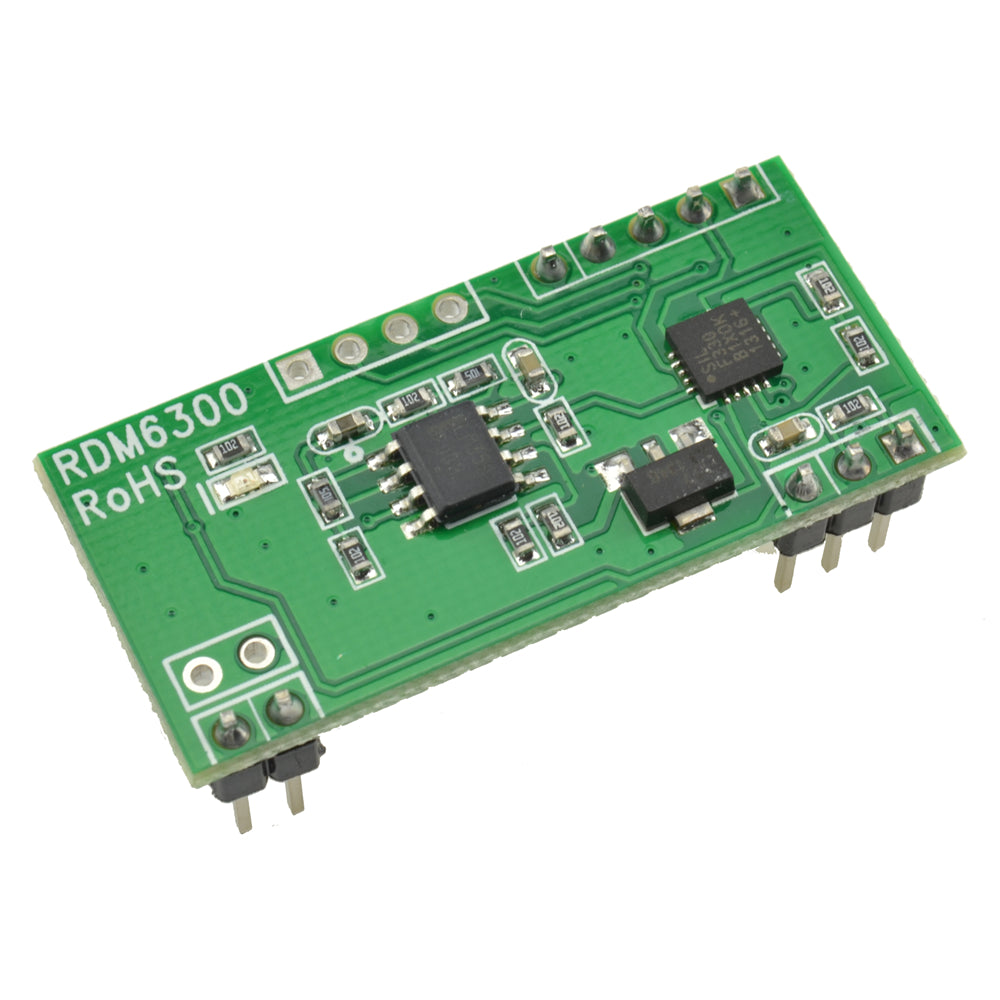

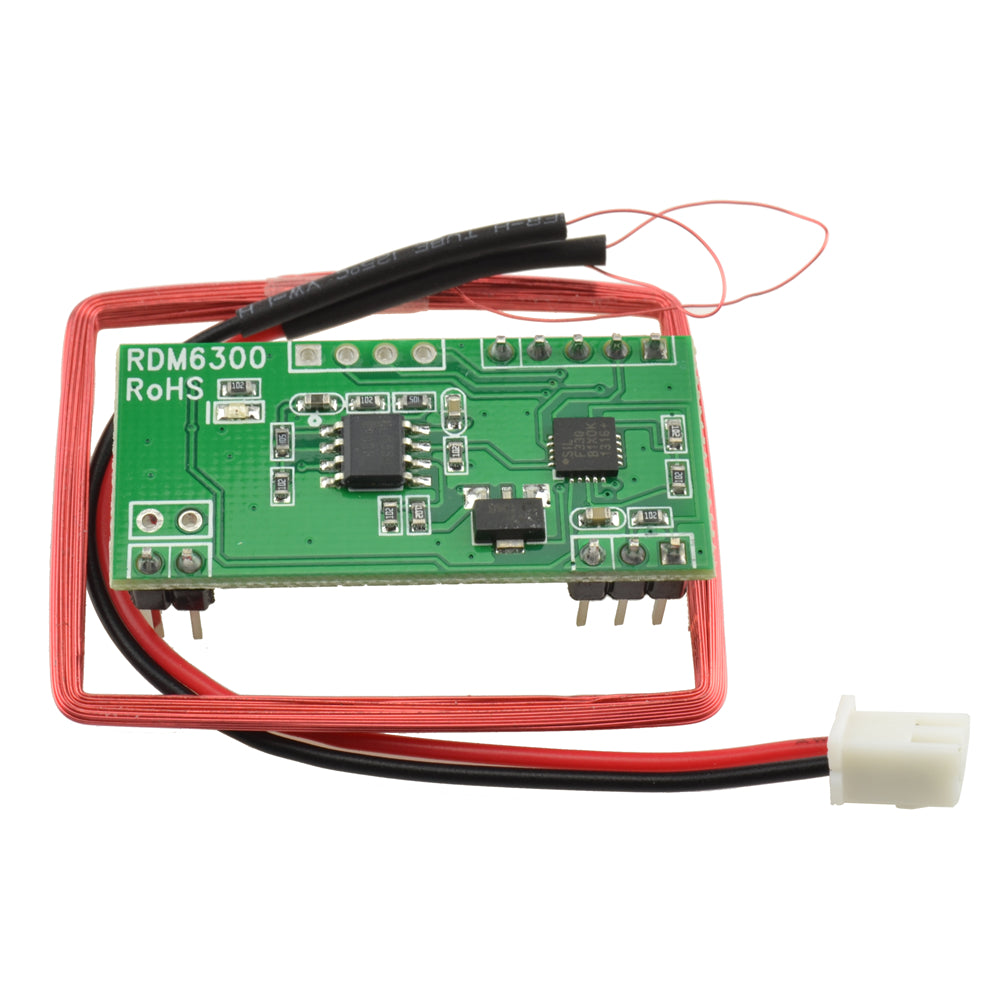

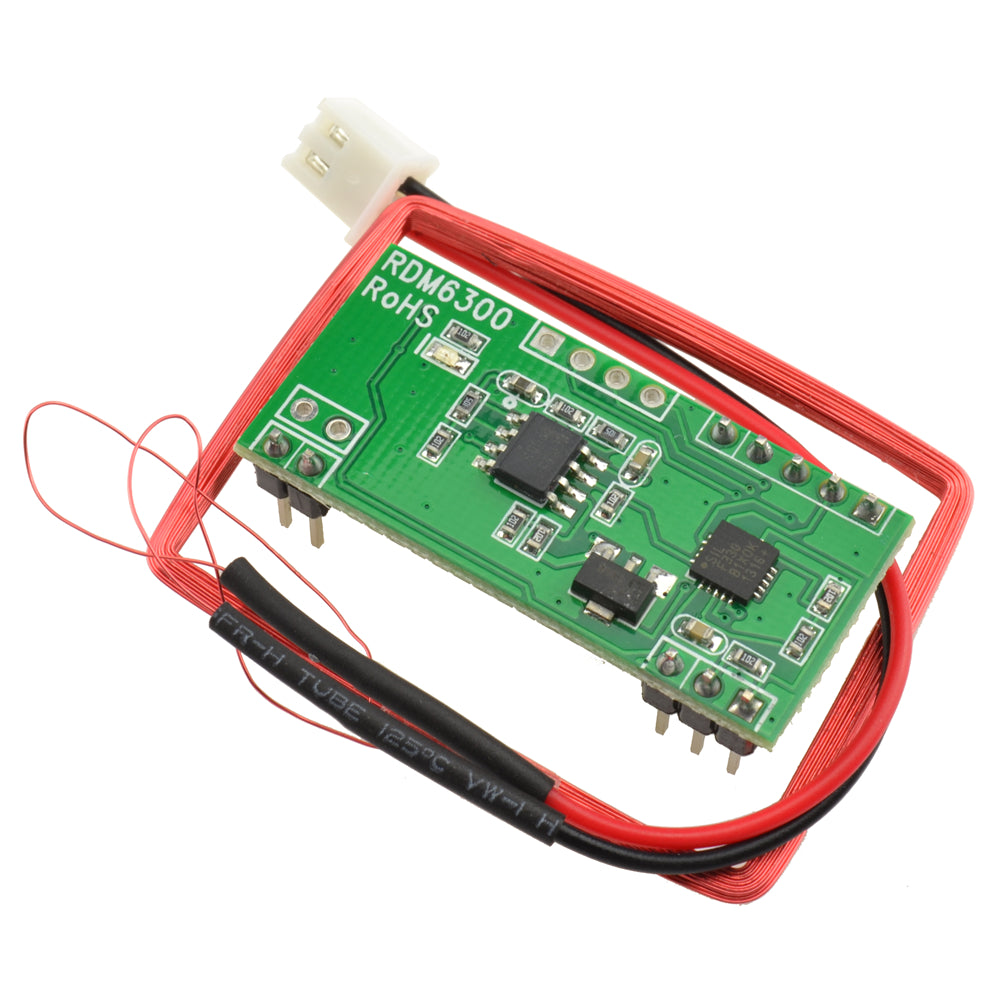

1 x 125K EM4100 RFID Card Reader Module

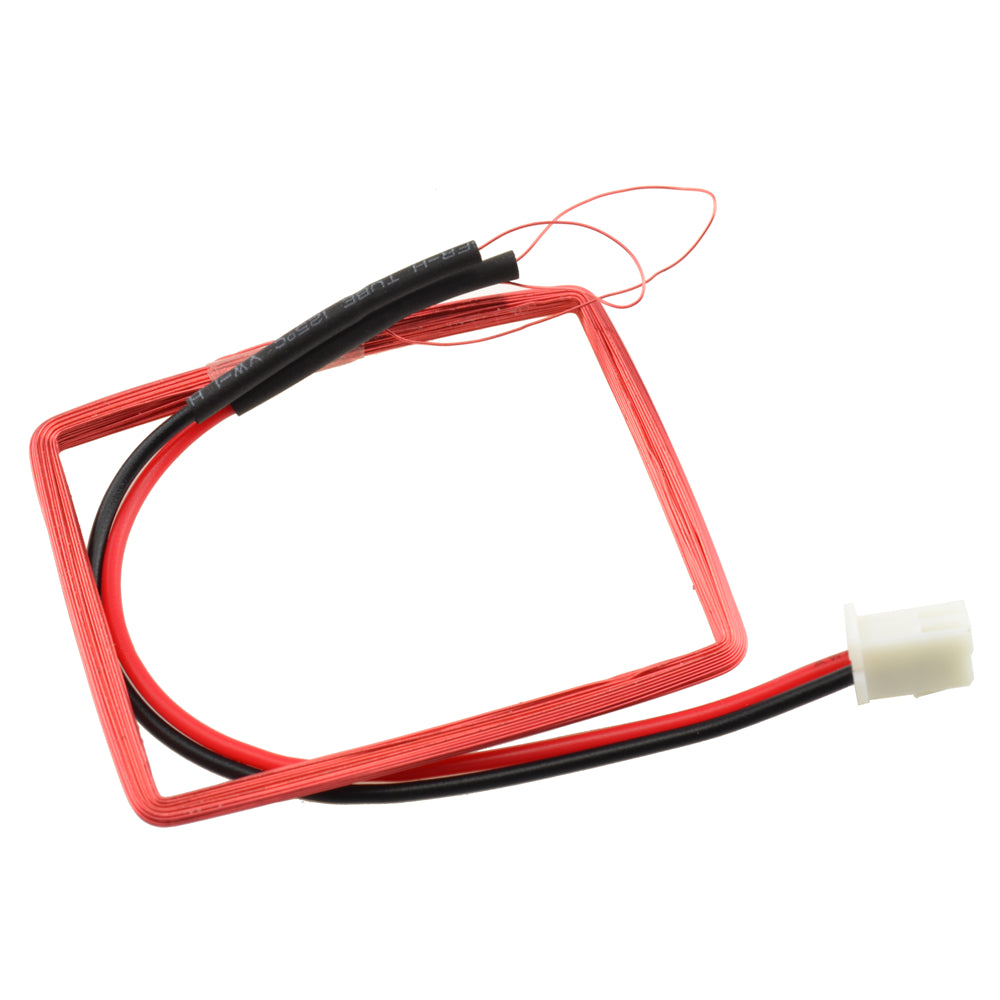

1 x Coil
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
Features:

Frequency: 125KHZ
- Baud rate: 9600
- Interface: TTL level RS232 format
- Working voltage: DC 5V(+/-5%)
- Working current: <50mA
- Receive distance: 20~50mm
- Working temperature: -10°C~+70°C
- Storage temperature: -20°C~+80°C
- Humidity: 0~95%
- Wiring size: 46*32*3mm
- PCB size: 38.5*19*9mm

Package Included:

1 x 125K EM4100 RFID Card Reader Module
1 x Coil
