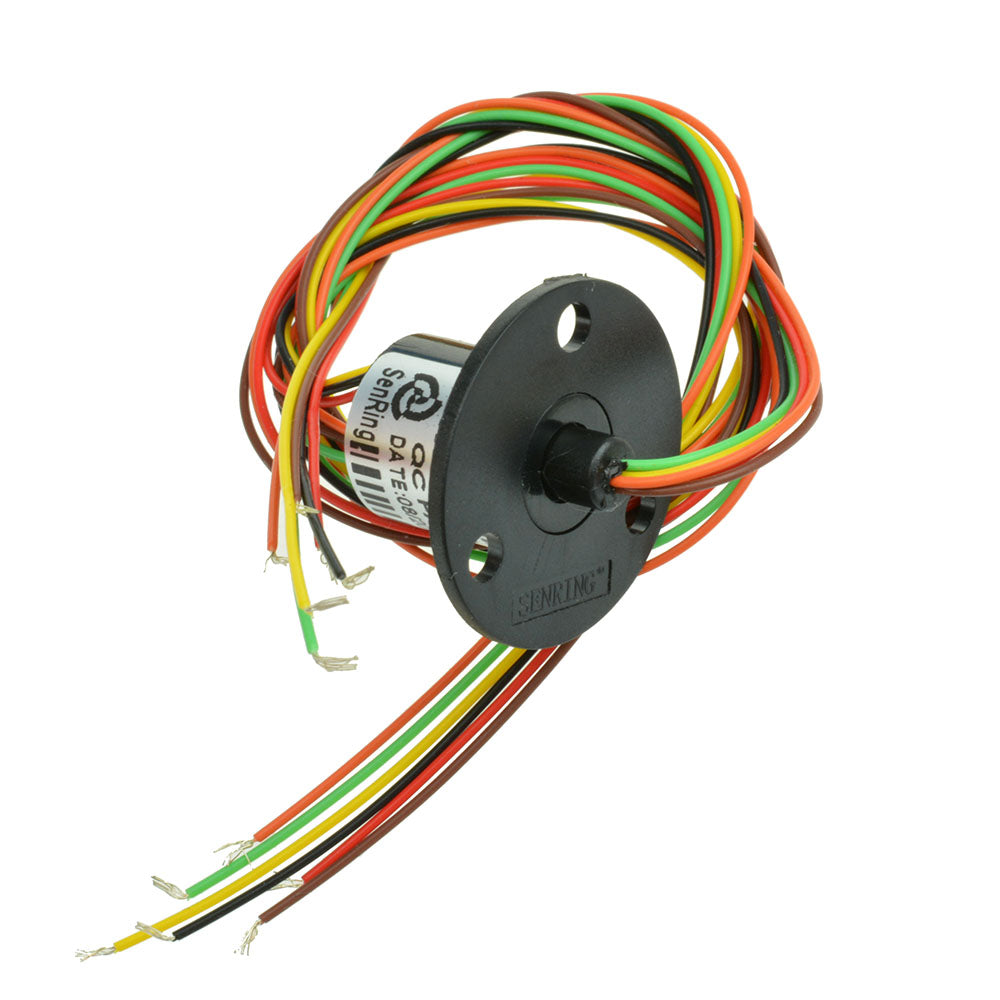

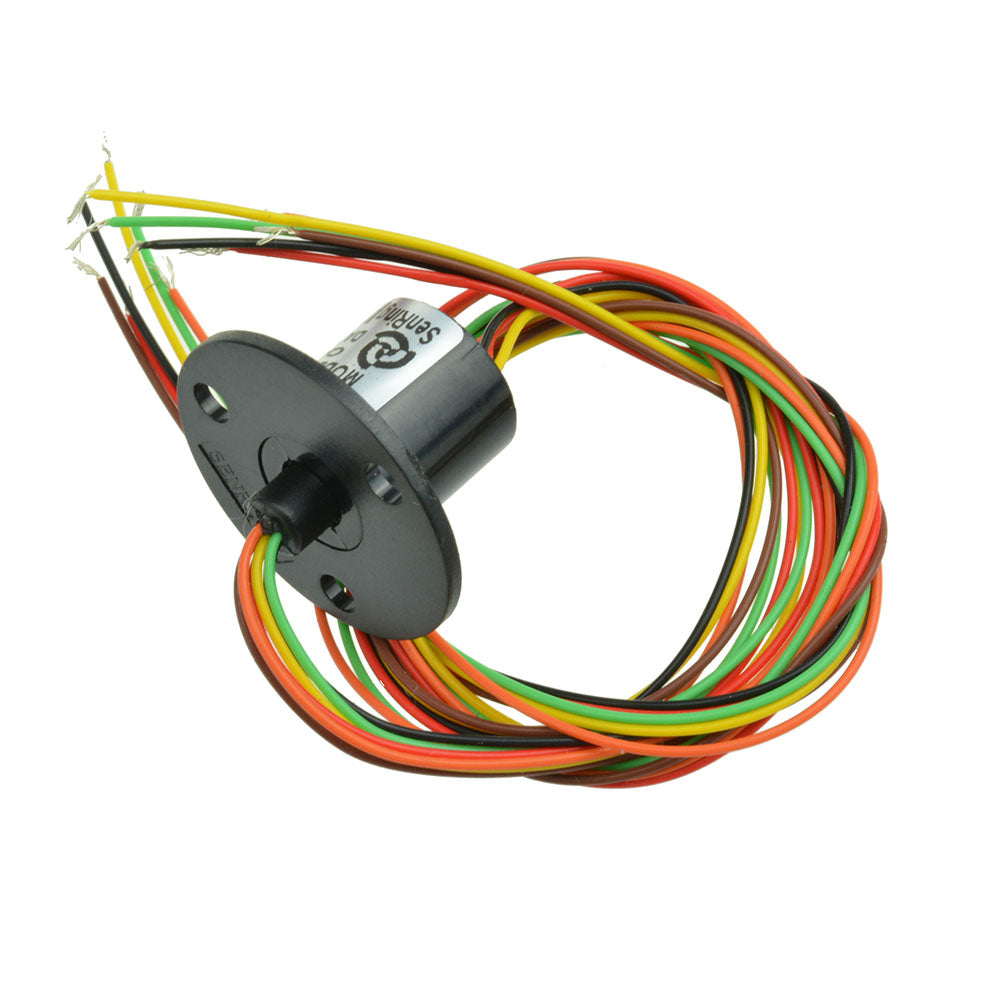

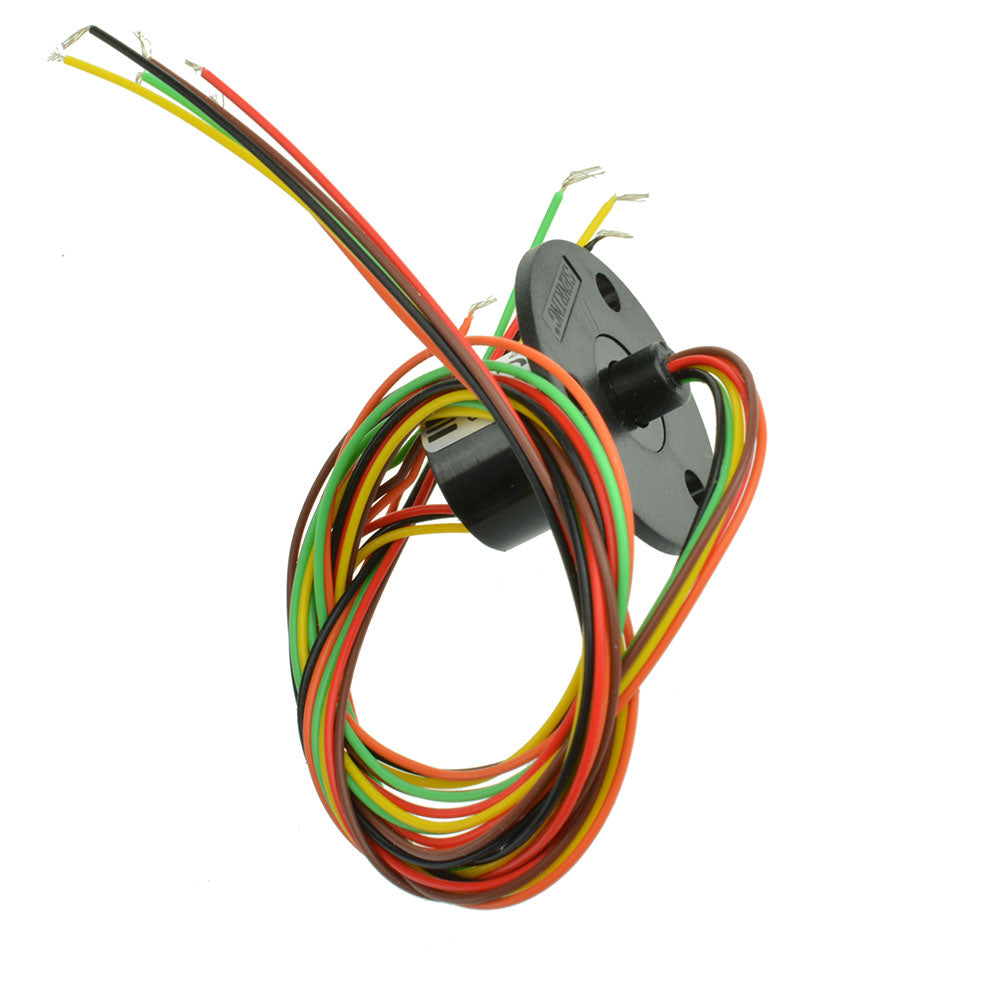

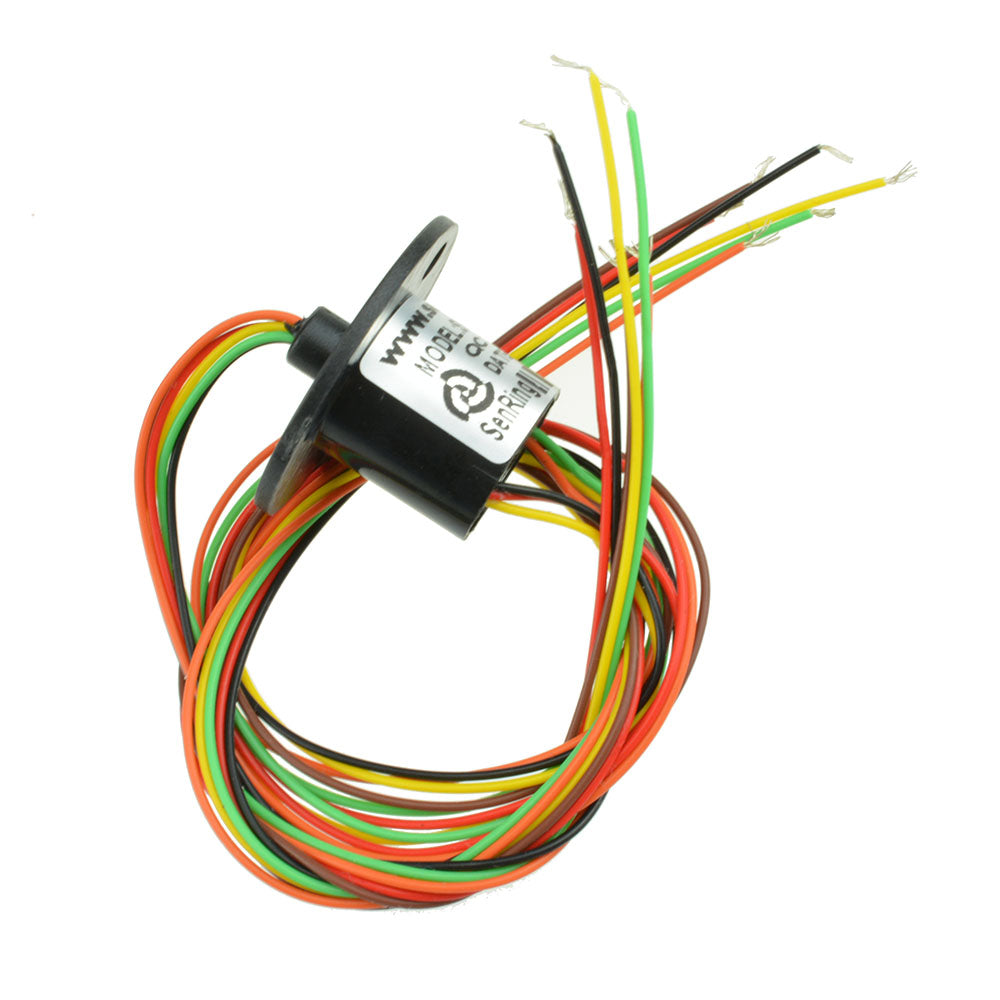

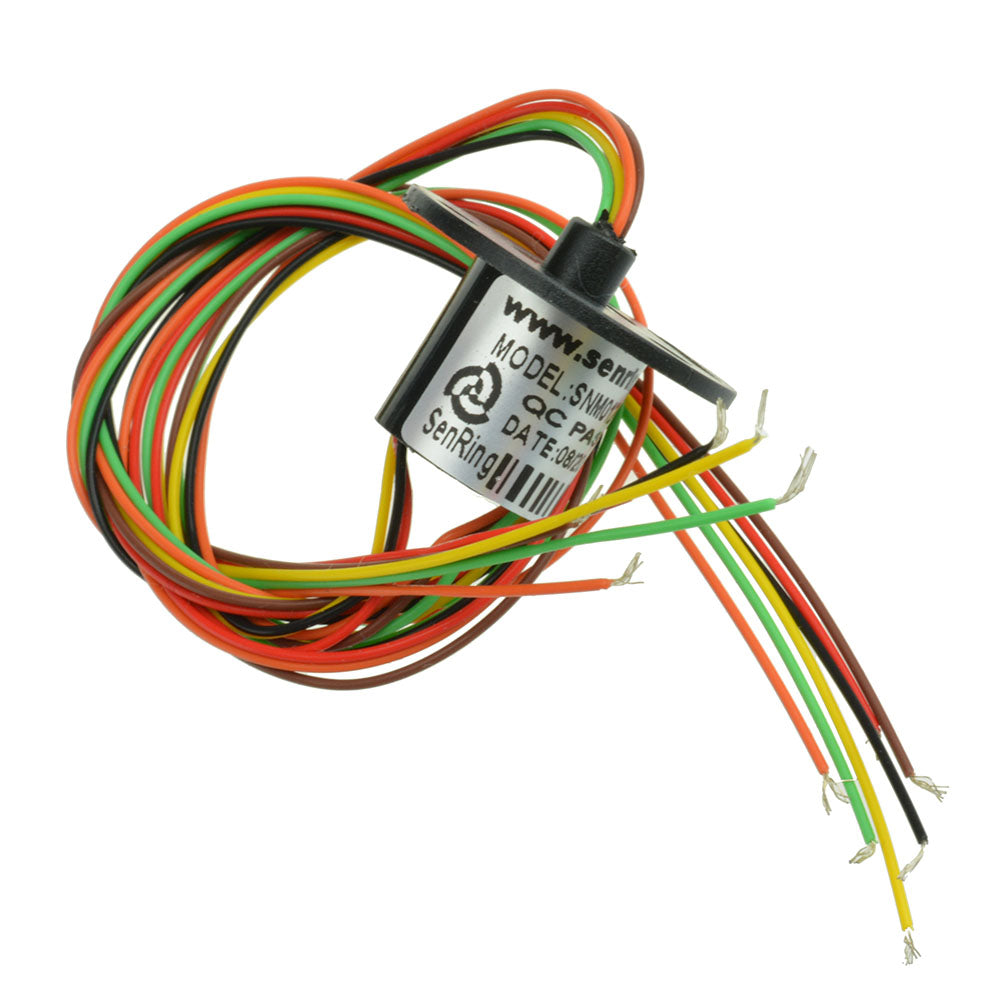

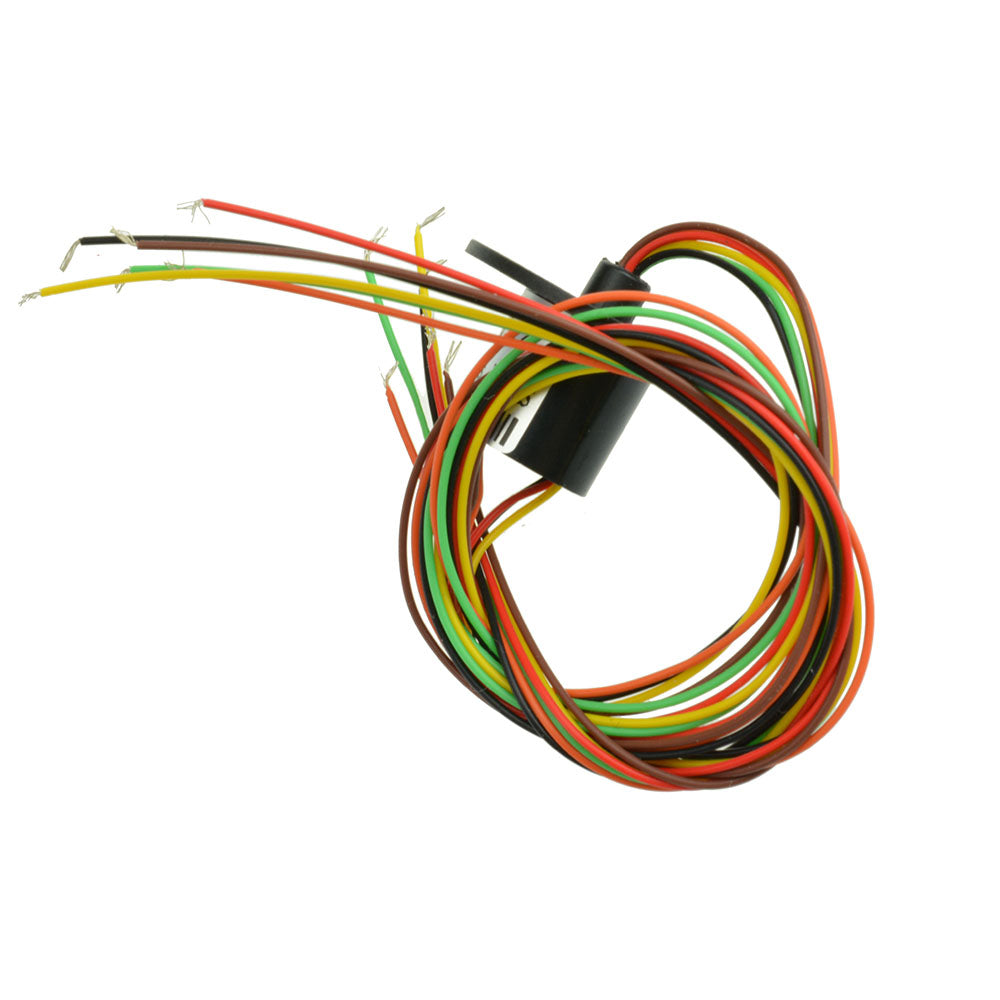

300Rpm Capsule Slip Ring 6 Circuits Wires 12.5mm 2A AC 240V Test Equipment

300Rpm Capsule Slip Ring 6 Circuits Wires 12.5mm 2A AC 240V Test Equipment

SKU:050155
Regular price $7.99

Feature:
The Capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.Using a 90 degree V-groove ring design for each ring, provides smoother running, lower torque low contact wear rates than competitive slip ring. provides 6, circuit configurations.
Used advanced technology to design, lower consumption.
Compact design allows tremendous flexibility in dealing with system size restrictions: 12.5mm outside diameter, and 15 mm length.
Can combine signal and power in same slip ring,completely satisfy 360 degrees of rotation
Precision module provides long time maintenance –free operation(no cleaning or lubrication required);
Specification:

  • Voltage: 240 VAC/DC
  • Current: 2A per circuits
  • Speed: 0-300 Rpm
  • Circuits: 6
  • Housing Material: Engineering Plastics
  • Work Humidity: 60%RH or higher
  • Work Temp.: -40℃~+80℃
  • Contact material: Gold plated ring-Gold plated brush
  • nsulation resistance: 1000 Mω @ 500 VDC
  • Lead size: 225mm 30# AWG Teflon wire
  • Dielectric strength: Between each circuit and all other circuits , ≥ 500 VAC @ 50Hz
  • Electrical noise: ≤10mω
  • Work life: Depending on speed and working environment, ≥50,000,000 runs ref
  • Outside dia: 12.5mm
  • Flange dia.: 24mm
  • Length: 15mm
  • CE, ROHS passed
Applications:
  • CCTV Monitoring System
  • Electrical test equipment
  • Medical equipment
  • Robotics
Package included:
  • 1PC*12.5mm 300Rpm 6 Wires CIRCUITSx2A Capsule Slip Ring AC 240V for Monitor Robotic
