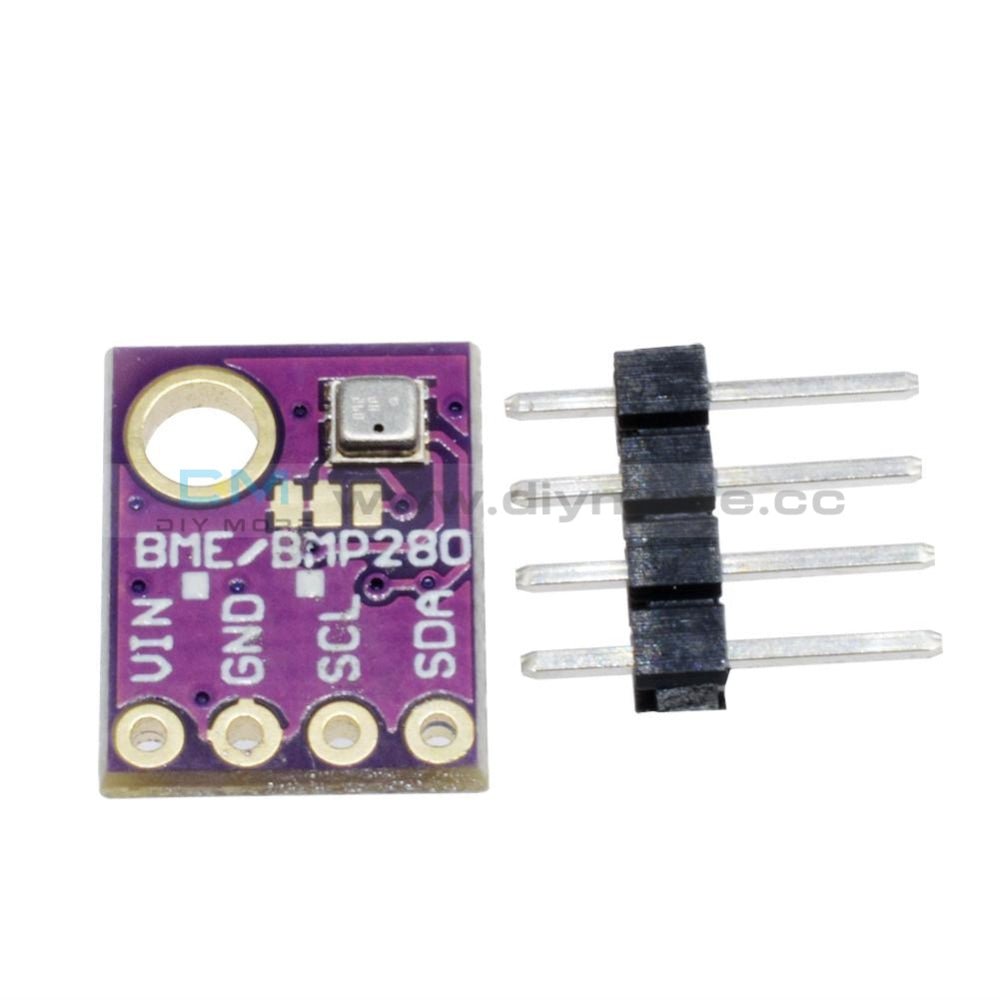

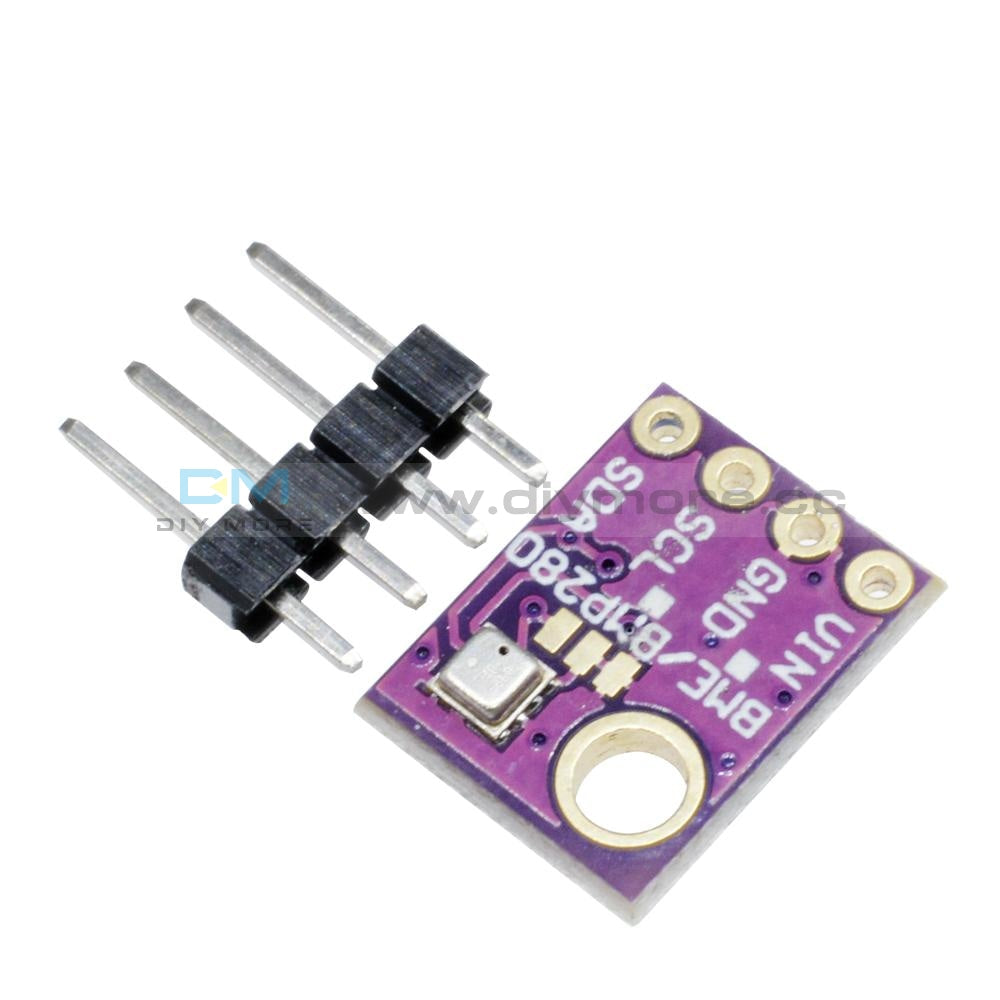

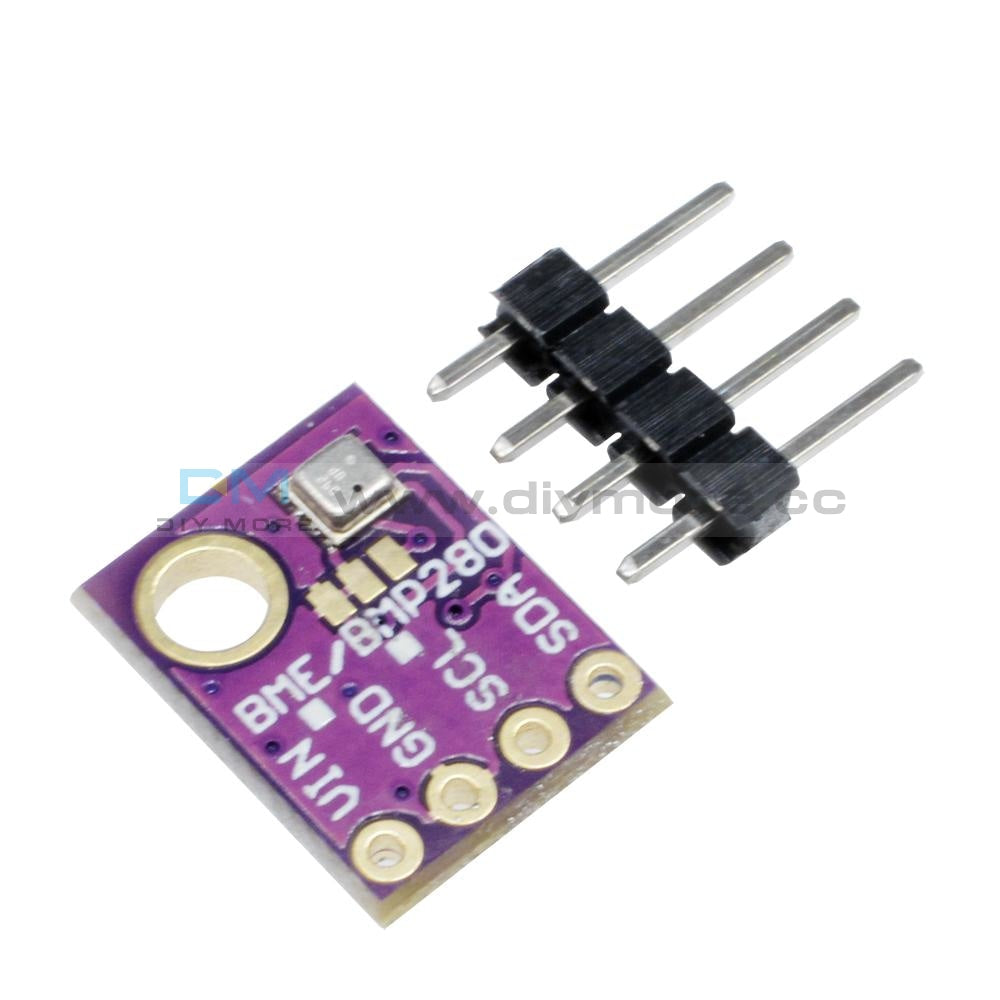

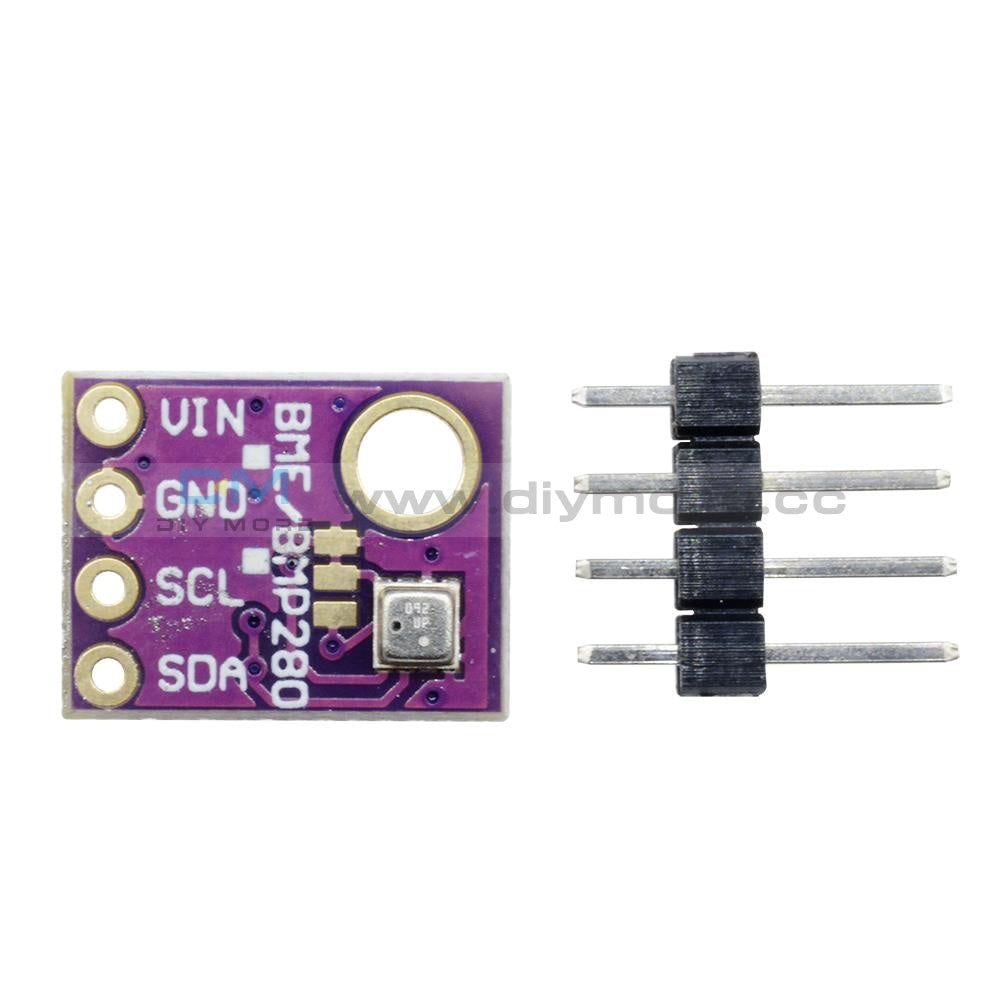

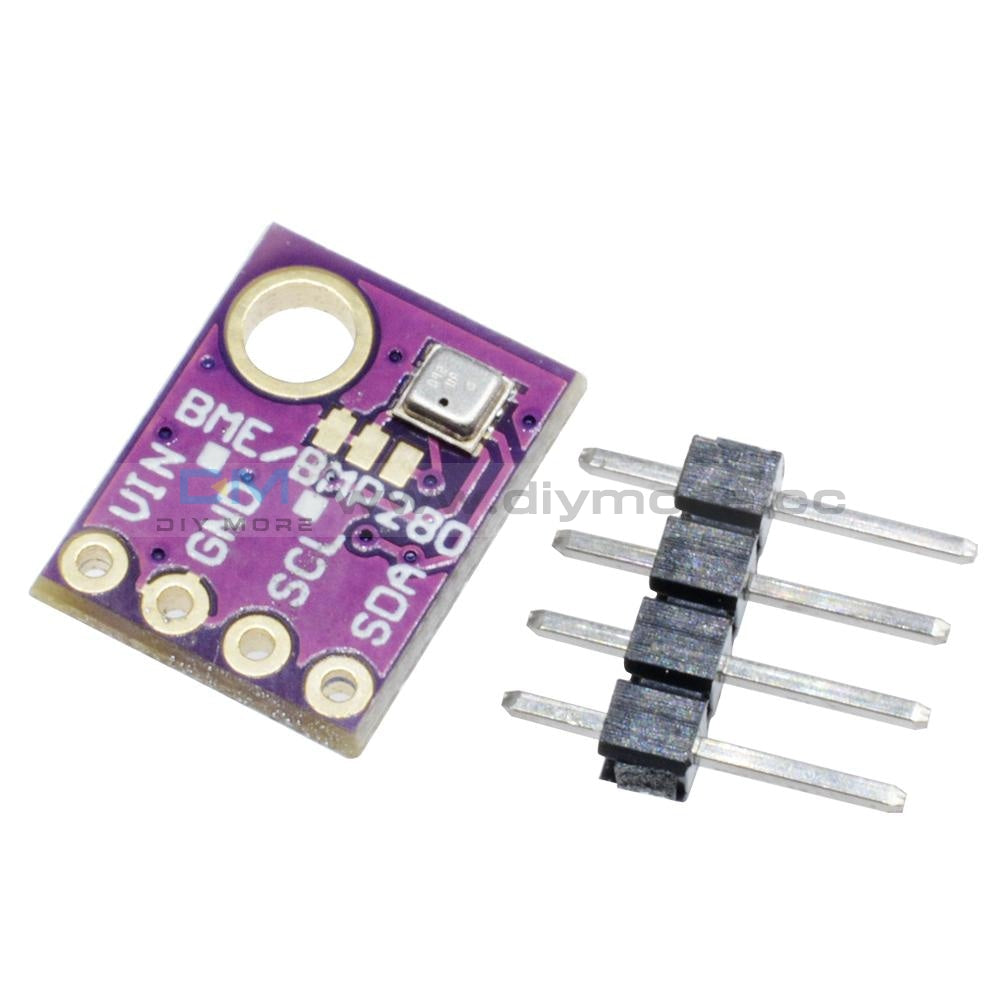

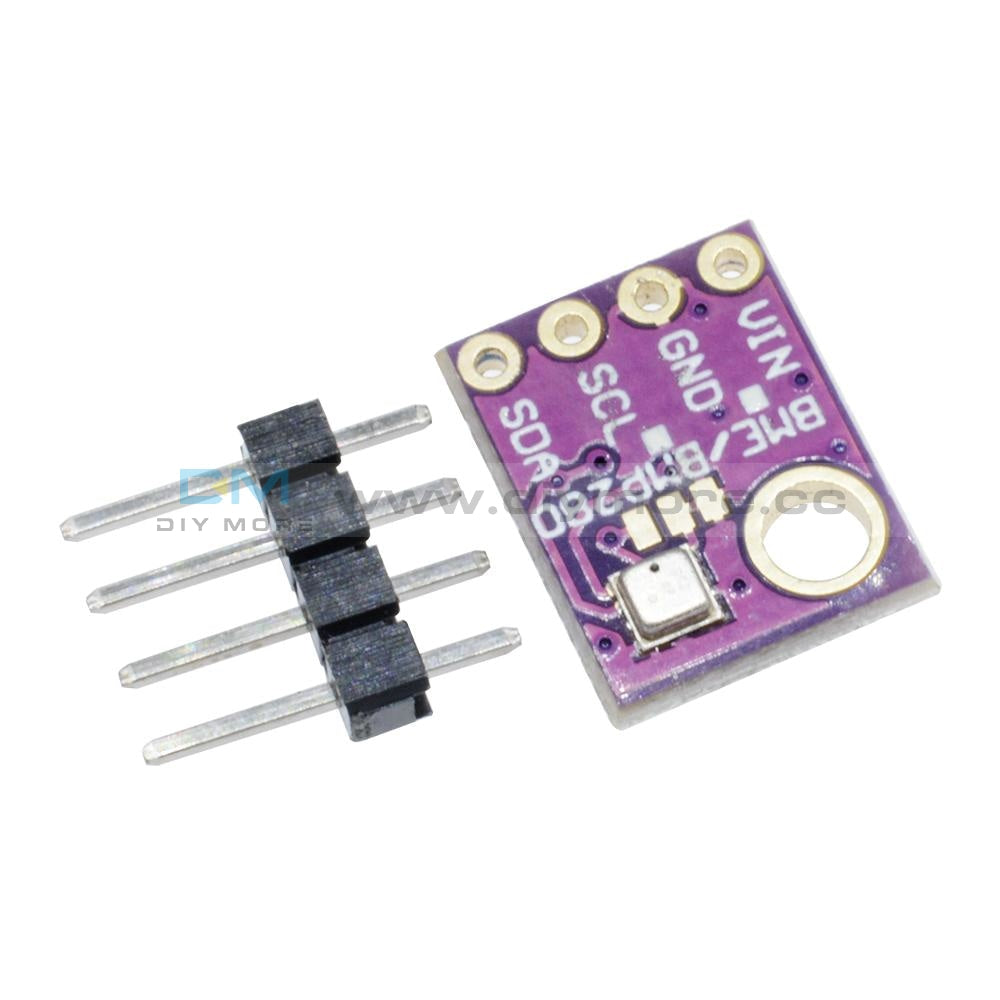

GY-BME280 High Precision Digital Sensor Breakout Barometric Pressure Temperature Humidity Module Board for Arduino Raspberry Pi

GY-BME280 High Precision Digital Sensor Breakout Barometric Pressure Temperature Humidity Module Board for Arduino Raspberry Pi

SKU:010869
Regular price $5.50

shipped within one bussiness day

  • The BME280 is a great new chip which was originally designed for the next generation of smartphones.
  • With an I2C connection you have access to enough weather data to make some pretty good predictions for your local area.
  • BME280, the precision sensor from , is soldered onto PCB.
  • Not only the pressure and the temperature, this sensor can measure humidity.
  • It uses both I2C and SPI (supports 3-, 4-wire SPI) interface

Board Mount Humidity Sensors The BME280 is an integrated environmental sensor developed specifically for mobile applications where size and low power consumption are key design constraints.

Specifications:

Supply Voltage: 1.8 - 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)

Operational Range:
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa

Resolution:
Temperature: 0.01°C
Humidity: 0.008%
Pressure: 0.18Pa

Accuracy:
Temperature: +-1°C
Humidity: +-3%
Pressure: +-1Pa

I2C address
SDO LOW : 0x76
SDO HIGH: 0x77


Applications
- Context awareness, e.g. skin detection, room change detection
- Fitness monitoring / well-being
- Warning regarding dryness or high temperatures
- Measurement of volume and air flow
- Home automation control
- Control heating, ventilation, air conditioning (HVAC)
- Internet of things
- GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection)
- Indoor navigation (change of floor detection, elevator detection)
- Outdoor navigation, leisure and sports applications
- Weather forecast
- Vertical velocity indication (rise/sink speed)

Package Included:
1 x BME280 Digital Sensor Module

trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
  • The BME280 is a great new chip which was originally designed for the next generation of smartphones.
  • With an I2C connection you have access to enough weather data to make some pretty good predictions for your local area.
  • BME280, the precision sensor from , is soldered onto PCB.
  • Not only the pressure and the temperature, this sensor can measure humidity.
  • It uses both I2C and SPI (supports 3-, 4-wire SPI) interface

Board Mount Humidity Sensors The BME280 is an integrated environmental sensor developed specifically for mobile applications where size and low power consumption are key design constraints.

Specifications:

Supply Voltage: 1.8 - 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)

Operational Range:
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa

Resolution:
Temperature: 0.01°C
Humidity: 0.008%
Pressure: 0.18Pa

Accuracy:
Temperature: +-1°C
Humidity: +-3%
Pressure: +-1Pa

I2C address
SDO LOW : 0x76
SDO HIGH: 0x77


Applications
- Context awareness, e.g. skin detection, room change detection
- Fitness monitoring / well-being
- Warning regarding dryness or high temperatures
- Measurement of volume and air flow
- Home automation control
- Control heating, ventilation, air conditioning (HVAC)
- Internet of things
- GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection)
- Indoor navigation (change of floor detection, elevator detection)
- Outdoor navigation, leisure and sports applications
- Weather forecast
- Vertical velocity indication (rise/sink speed)

Package Included:
1 x BME280 Digital Sensor Module
