USB Electrical Power Charging Current Voltage Tester LCD Digital Voltmeter Ammeter Monitor Doctor Voltmeter Ammeter Dual Display

USB Electrical Power Charging Current Voltage Tester LCD Digital Voltmeter Ammeter Monitor Doctor Voltmeter Ammeter Dual Display

SKU:C010510
Regular price $2.99 Sale price $1.99

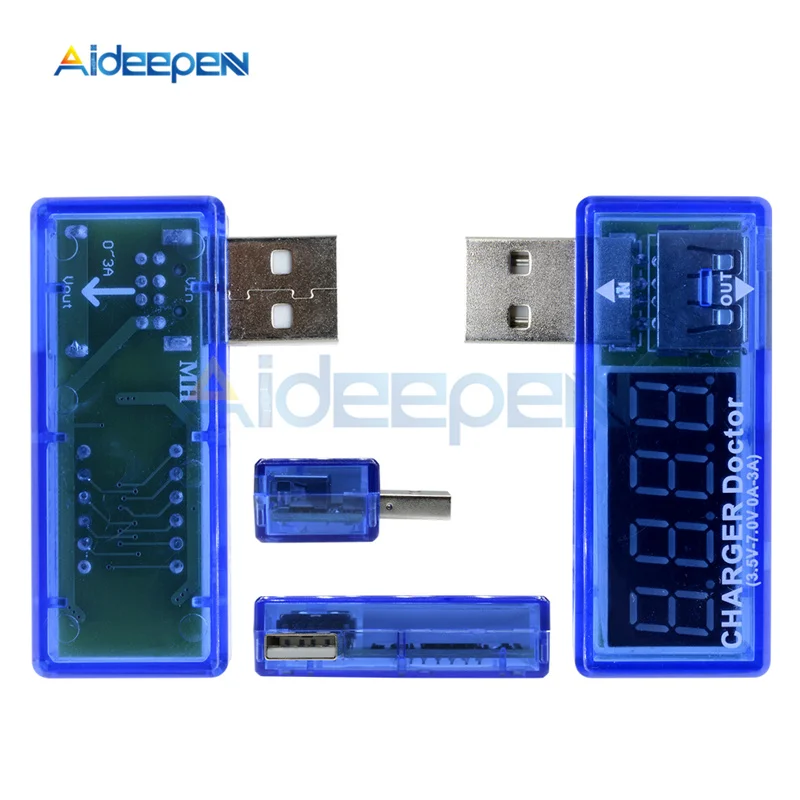

Description:

It can measure the USB-powered devices empty and . Easy to use and practical.

Compact and easy to carry, no additional power supply, plug and play.

It can easily measure the output voltage of the USB port and the device operating current or load voltage

Detect any USB charger such as PC USB, home charger, car charger.

Wide range of applications, any phone, any electronic product, Easy to use. suitable for factories,

laboratories and personal use.



Specifications:

Detection range: Voltage: 3v-7v error 0.1v

Current :0-2.5A error 0.01A

Size:63*21-34*15mm

Case Color:Blue

010510 (1)

It can measure the USB-powered devices empty

Easy to use and practical.

Compact and easy to carry, no additional power supply, plug and play.

It can easily measure the output voltage of the USB port and the device operating current or load voltage

Detect any USB charger such as PC USB, home charger, car charger.

Wide range of applications, any phone, any electronic product, Easy to use.

Suitable for factories, laboratories and personal use.



Specifications:

Voltage range: 3.3V-18V

Current range: 0-3.1A

Double display:

Voltage display: red

Current display: blue

Size: 52mm x 20mm x14mm

Weight: 16g

Shell color: blue

X12985 (3)

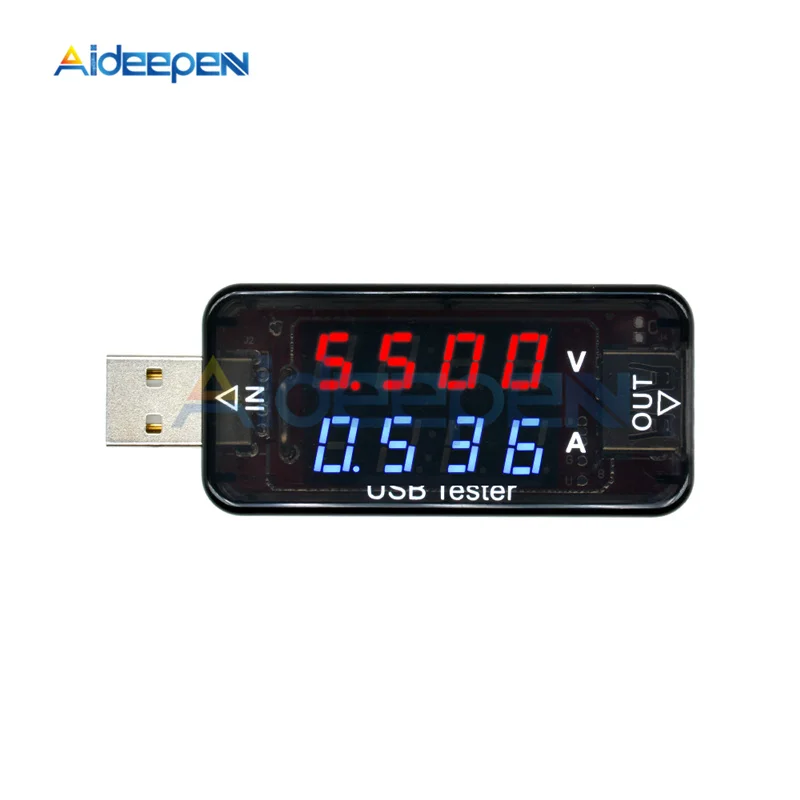

This is a 3/4 bit high precision usb tester for voltage current safe detector.

Real-time monitoring your charger or charging treasure USB output port,accurate detection of voltage,current data.

Input/Output voltage:3.3V~30V

Input/Output current:0-5A (Recommended 0-3A)

Voltage resolution:0.001V

Current resolution:0.001A

Accuracy:+-1%

Line loss:0.1 ohm or so

Communication function :Yes

Data calibration function :Yes

X13261 (22)

X13260 (24)X13260 (25)

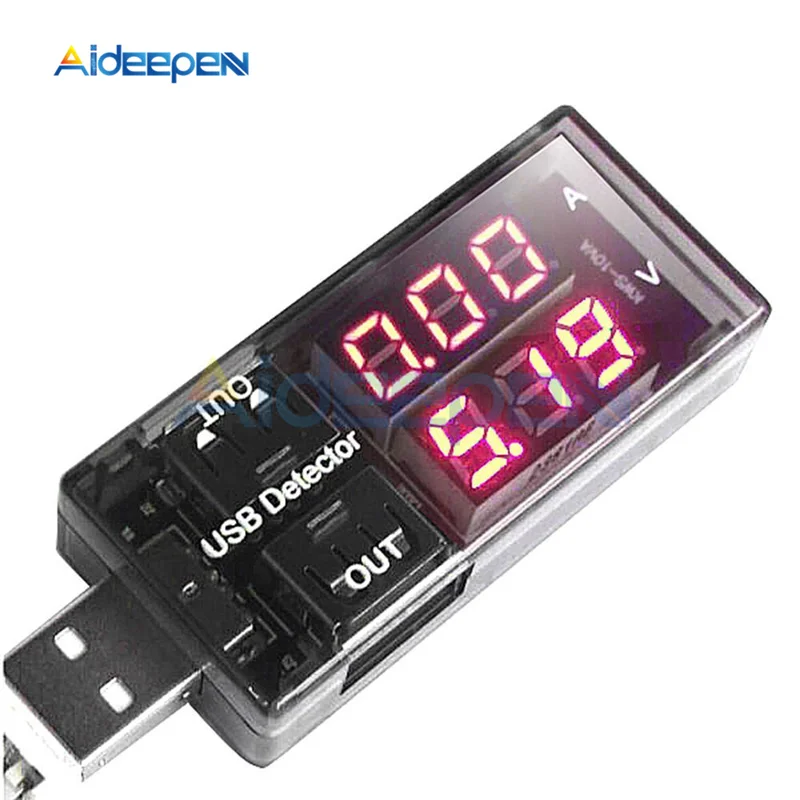

Description:

Can easily measure the operating current of the output voltage of the USB port and equipment 2. smallsize , no power , and other ancillary equipment, plug and play also detect USB charger output voltage and current are standard suitable for factories, Laboratory and users.

Technical indicators:

Scope of work: Current (0~2.5A) can detect mobile phone charger voltage compliance DC 5V

Operating Range : U = 3 ~ 7.5V I = 0 ~ 2.5A

Resolution : Voltage 10mV current 1mA

Error : voltage <± 1% current <± 2%

Full scale drop : ( When measuring current ) 200mV

The tester uses a new generation of power four semi~ double loop integral converter IC , with a precision bandgap reference , range accuracy , high precision , stable and reliable performance , strong anti~interference ability , high temperature can be used for measuring USB powered or power consumption of the interface , mobile phone charger , U disk and other products.

1, USB powered devices can be used to measure air , voltage loads , USB terminal equipment working voltage and current .

2, The current and voltage cycle , easy to use and practical.

3, Compact and easy to carry , no additional power supply



011434 1

011434

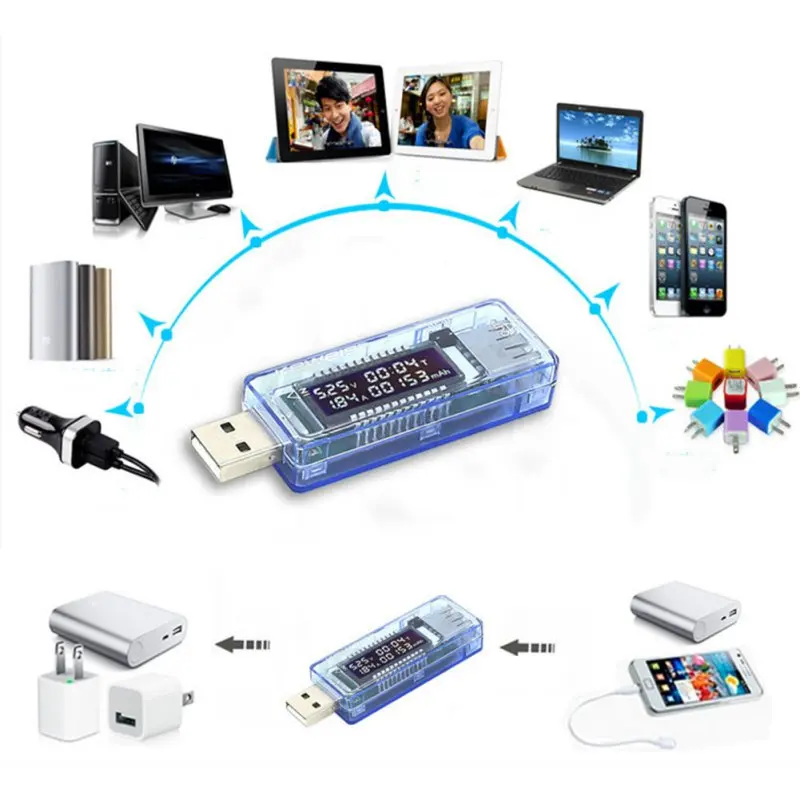

Feature:

- 100% Brand new and high quality.

- It measures the current and voltage of the power supply unit with a USB port.

- Plug and play, no extra power required.

- The voltage and current will show a circle.

- Small size, simple and easy to carry.



Product specifications:

Possible range: 3.5 - 7.0V, 0 - 3A.

Resolution: The voltage is 10mV and the current is 10mA.

Error range: voltage <±1%, current <±2%.

Full-scale voltage drop: 200mV.

Operating temperature: 0 - 60 ° C.

Color: transparent, blue

050563 03

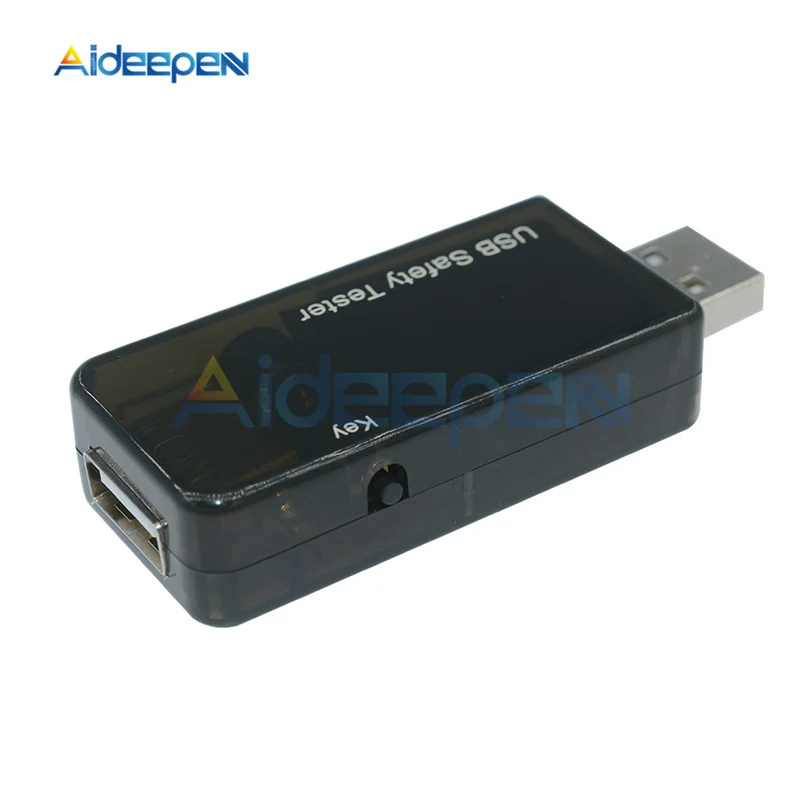

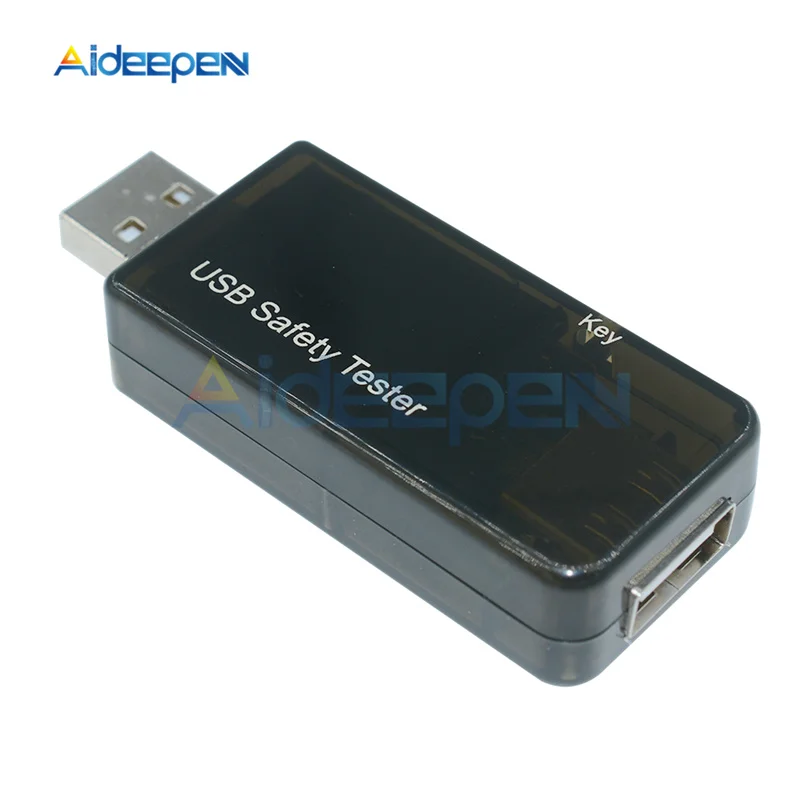

Description:

Size:60x24x14(mm)

Weight:0.10g

Input Voltage: 3V - 30V

Input current : 0 - 5.1A

Cumulative capacity range: 0-99999 mah precision: 0.001 Ah

Charge accumulation scope: 0-999999 MWH precision: 0.001 Wh

Cumulative power range: 0-299.999W precision: 0.001W

Timing the maximum range: 0-999 hours 59 minute 59 seconds precision: 1 second

Parameters that you can test: Voltage of battery. Current of battery, discharge capacity of battery,Quantity of electric charge,power of battery,timing.

Communication function: Yes

Parameters adjusting function :Yes. Equipment for parameters adjustment: One electronic load,one constant current source. Voltage of constant current source should be set to 8.5V

There are 3A, 2A, 1A and 0.3A models for current adjusting.

Color:Black

050945 (1)050945 (2)


trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155

Description:

It can measure the USB-powered devices empty and . Easy to use and practical.

Compact and easy to carry, no additional power supply, plug and play.

It can easily measure the output voltage of the USB port and the device operating current or load voltage

Detect any USB charger such as PC USB, home charger, car charger.

Wide range of applications, any phone, any electronic product, Easy to use. suitable for factories,

laboratories and personal use.



Specifications:

Detection range: Voltage: 3v-7v error 0.1v

Current :0-2.5A error 0.01A

Size:63*21-34*15mm

Case Color:Blue

010510 (1)

It can measure the USB-powered devices empty

Easy to use and practical.

Compact and easy to carry, no additional power supply, plug and play.

It can easily measure the output voltage of the USB port and the device operating current or load voltage

Detect any USB charger such as PC USB, home charger, car charger.

Wide range of applications, any phone, any electronic product, Easy to use.

Suitable for factories, laboratories and personal use.



Specifications:

Voltage range: 3.3V-18V

Current range: 0-3.1A

Double display:

Voltage display: red

Current display: blue

Size: 52mm x 20mm x14mm

Weight: 16g

Shell color: blue

X12985 (3)

This is a 3/4 bit high precision usb tester for voltage current safe detector.

Real-time monitoring your charger or charging treasure USB output port,accurate detection of voltage,current data.

Input/Output voltage:3.3V~30V

Input/Output current:0-5A (Recommended 0-3A)

Voltage resolution:0.001V

Current resolution:0.001A

Accuracy:+-1%

Line loss:0.1 ohm or so

Communication function :Yes

Data calibration function :Yes

X13261 (22)

X13260 (24)X13260 (25)

Description:

Can easily measure the operating current of the output voltage of the USB port and equipment 2. smallsize , no power , and other ancillary equipment, plug and play also detect USB charger output voltage and current are standard suitable for factories, Laboratory and users.

Technical indicators:

Scope of work: Current (0~2.5A) can detect mobile phone charger voltage compliance DC 5V

Operating Range : U = 3 ~ 7.5V I = 0 ~ 2.5A

Resolution : Voltage 10mV current 1mA

Error : voltage <± 1% current <± 2%

Full scale drop : ( When measuring current ) 200mV

The tester uses a new generation of power four semi~ double loop integral converter IC , with a precision bandgap reference , range accuracy , high precision , stable and reliable performance , strong anti~interference ability , high temperature can be used for measuring USB powered or power consumption of the interface , mobile phone charger , U disk and other products.

1, USB powered devices can be used to measure air , voltage loads , USB terminal equipment working voltage and current .

2, The current and voltage cycle , easy to use and practical.

3, Compact and easy to carry , no additional power supply



011434 1

011434

Feature:

- 100% Brand new and high quality.

- It measures the current and voltage of the power supply unit with a USB port.

- Plug and play, no extra power required.

- The voltage and current will show a circle.

- Small size, simple and easy to carry.



Product specifications:

Possible range: 3.5 - 7.0V, 0 - 3A.

Resolution: The voltage is 10mV and the current is 10mA.

Error range: voltage <±1%, current <±2%.

Full-scale voltage drop: 200mV.

Operating temperature: 0 - 60 ° C.

Color: transparent, blue

050563 03

Description:

Size:60x24x14(mm)

Weight:0.10g

Input Voltage: 3V - 30V

Input current : 0 - 5.1A

Cumulative capacity range: 0-99999 mah precision: 0.001 Ah

Charge accumulation scope: 0-999999 MWH precision: 0.001 Wh

Cumulative power range: 0-299.999W precision: 0.001W

Timing the maximum range: 0-999 hours 59 minute 59 seconds precision: 1 second

Parameters that you can test: Voltage of battery. Current of battery, discharge capacity of battery,Quantity of electric charge,power of battery,timing.

Communication function: Yes

Parameters adjusting function :Yes. Equipment for parameters adjustment: One electronic load,one constant current source. Voltage of constant current source should be set to 8.5V

There are 3A, 2A, 1A and 0.3A models for current adjusting.

Color:Black

050945 (1)050945 (2)
